09-29-2026 Q&A: Toolpath Arrays, Speeding Up Inlays, and CNC Grounding

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

In this Q&A session, we covered upcoming Vectric User Group Meeting details and answered questions on managing array toolpaths, significantly reducing long carve times for inlays, and navigating Vectric software upgrades. We also troubleshooted VCarve boundary logic for raised lettering and discussed physical hardware issues like CNC axis drifting and dust collection grounding.

Key Tips Learned in this Q&A:

• Reverting Array Toolpaths: If you create an array of toolpaths and need to return to the original single layout, simply right-click the array copy toolpath and select "Ungroup".

• Optimizing Clearance Tools: For inlay plugs taking excessive times (e.g., 14+ hours), add a smaller clearance tool like a 1/8" end mill to reach tighter areas . This minimizes repetitive up-and-down Z-axis movements and reduces the heavy workload on the V-bit.

• Adjusting Pass Depths: Extremely shallow pass depths (like .025") can drastically inflate estimated carving times . Increasing the pass depth to safe limits for your machine (e.g., .125" or 1/16") can save hours of machining.

• Inverting VCarve Regions: To make elements like logos or letters stand up rather than be carved into the material, add or remove an outer border vector before calculating the toolpath . This reverses the standard "carve, skip, carve" alternating boundary sequence.

• Troubleshooting Axis Drifting: If the router wanders off the toolpath on a single axis, check for loose V-wheels, belts, or loose set screws on the drive couplers . Additionally, Electromagnetic Interference (EMI) from static buildup in the dust collection system can cause skipped steps; this can be resolved by installing a dust collection grounding kit.

Questions Answered in this Q&A:

• 00:12:25 - Steve: How can I delete an additional array copy toolpath and return to the original toolpath only?

• 00:14:56 - Greg: What can I do to speed up an inlay cutting board male plug carve that is currently taking 14+ hours?

• 00:38:33 - Ron: Should I wait until version 13 comes out before I buy Aspire, or upgrade now before version 13 comes out?

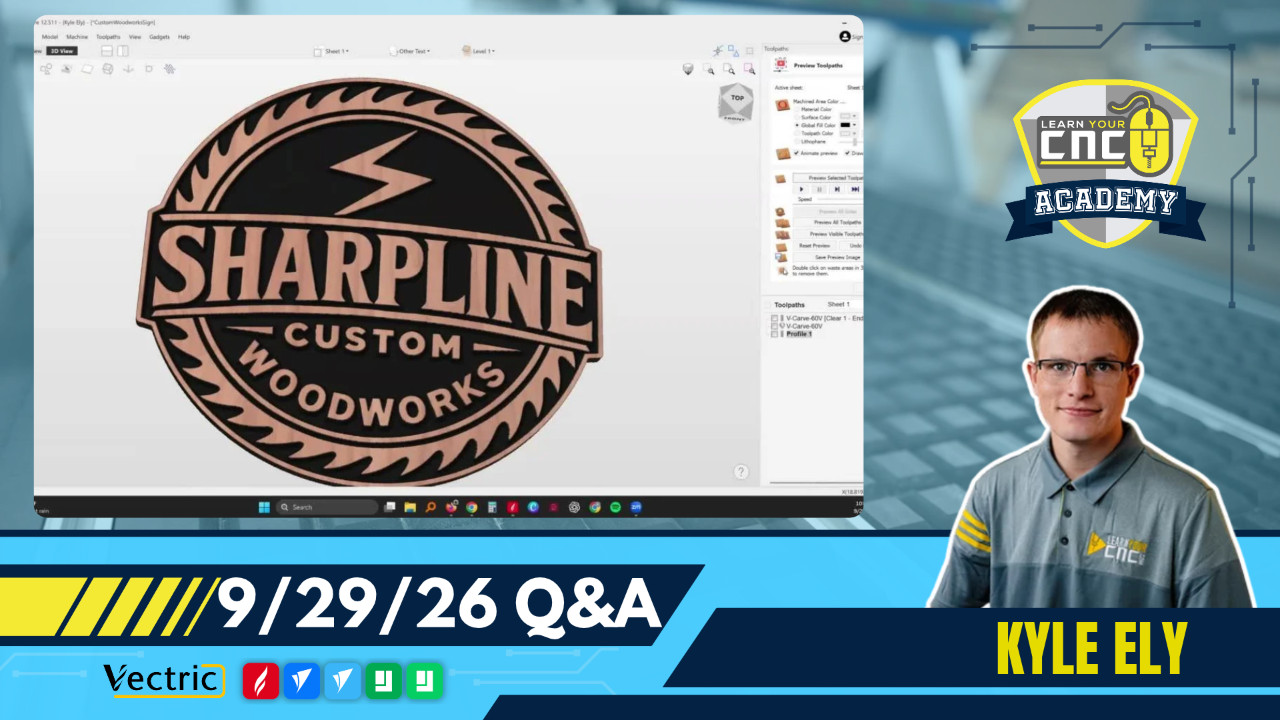

• 00:54:04 - Timothy: How do I carve my logo so all the lettering and the outside edge stand up with the bottom area carved flat?

• 01:00:46 - Chuck: What causes my router to take off out of the toolpath, mostly going to the left on the X-axis?

• 01:08:49 - Charlie: What is the best lesson to review to learn how to use the desktop molding toolpath for a unique edge on a round piece of wood?

• 01:19:28 - Alan: Why does the nose of the marlin get cut off when I carve a double-sided STL model, even though the preview looks fine?
