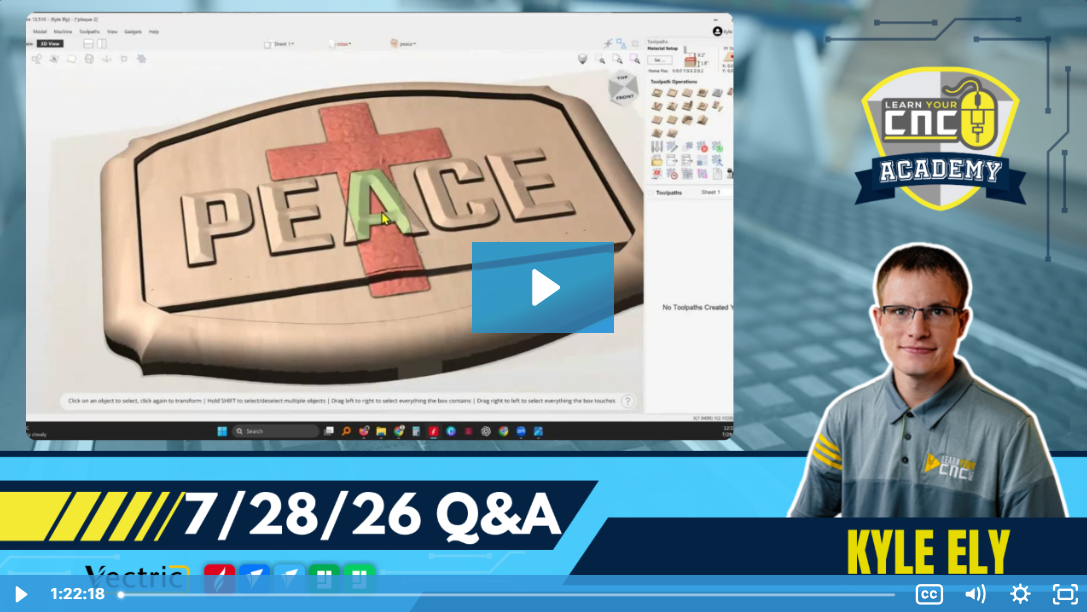

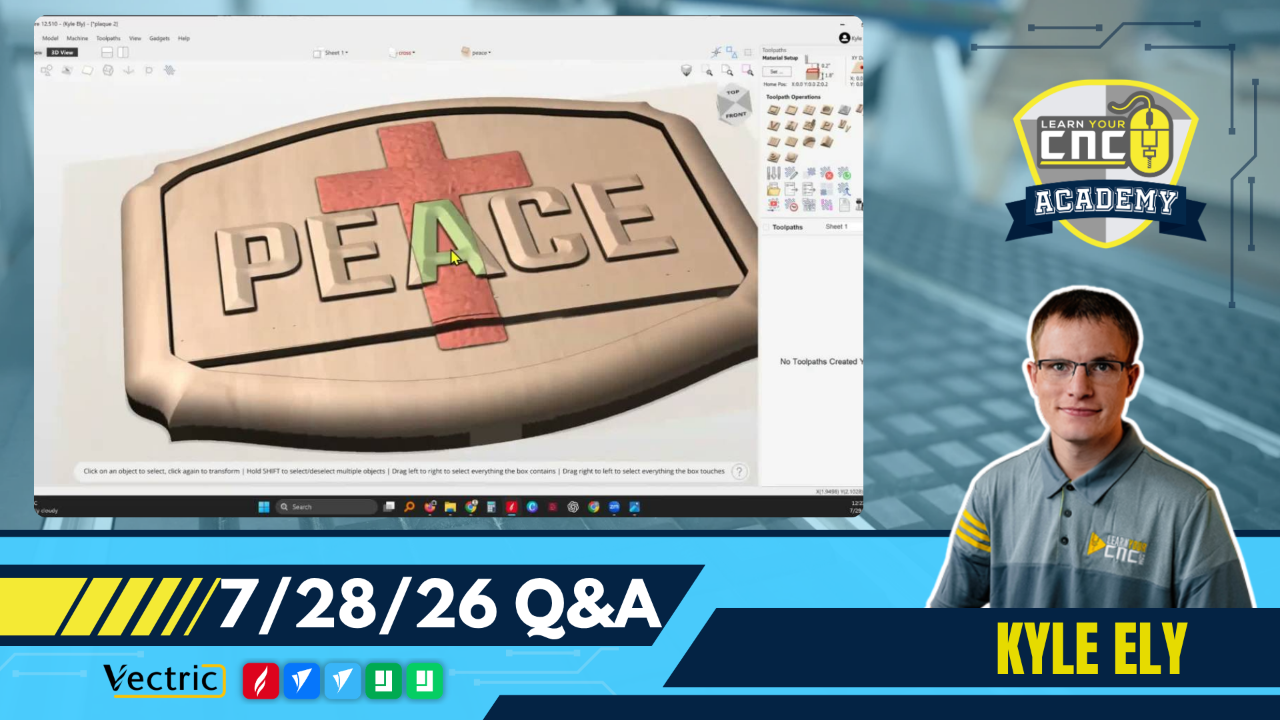

07-28-2026 Q&A: 3D Modeling Techniques, Inlay Troubleshooting, and Toolpath Strategies
Jul 28, 2026Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!
In this Q&A session, we covered a variety of topics including fixing flat 3D dome shapes, correcting component merge issues with textures, and troubleshooting inlay toolpaths that cut off fine details or leave ridges. We also discussed using the molding toolpath for smoother rounded edges, resizing offset vectors efficiently, and setting up post-processors for machines like the Shapeoko.
Key Tips Learned in this Q&A:
-
3D Shape Limits: To avoid a flat top on rounded 3D shapes, ensure that the limit height is set to a number greater than zero and an angle is defined.
-
Component Combine Modes: When 3D modeling, group your components onto specific levels and set appropriate combine modes (like 'Merge' or 'Add') . This prevents unwanted background textures or shapes from bleeding through your foreground objects.
-
Inlay Tool Sizing: When creating inlays with sharp details or small parts, make sure the male plug toolpath uses a bit small enough (such as an 1/8-inch end mill) to fit into tight areas . If the tool is larger than the modeled detail, the software will automatically cut those details off.
-
Molding Toolpath for Smooth Edges: For simple curved edges (like a steering wheel), use a molding toolpath instead of a 3D finish toolpath . The molding toolpath follows exact geometry, resulting in a smoother, less jagged cut and faster machining time.
-
Tool Database Accuracy: Always verify that your physical router bit's diameter and angle precisely match the settings in your tool database . Using a mismatched bit (e.g., using a 1/8-inch bit but programming for a 1/4-inch bit) can leave unwanted ridges or cause oversized pockets.
Questions Answered in this Q&A:
-
00:03:16 - Leo: Fixing flat domes in 3D modeling
-
00:11:33 - James: Creating a 2D inlay that sticks up 3/4 inch
-
00:15:21 - Ernie: Troubleshooting 3D component levels and clipping
-
00:23:51 - Paul: Rounding edges on a 3D modeled steering wheel
-
00:33:45 - Chuck: Printing a drawing to scale
-
00:36:14 - Matt: Removing landscape texture from foreground 3D models
-
00:42:03 - JFC: Preventing the male inlay toolpath from cutting off small details
-
00:48:48 - Dave: Making text deeper on an AI-generated 3D model
-
00:52:25 - Steve: Cleaning up edges and chamfering a 3D baseball diamond display
-
01:00:13 - Ruth: Fixing ridges left at the bottom of VCarve inlay pockets
-
01:05:49 - Lyle: Recessing a VCarve inlay pattern inside a pocket
-
01:10:00 - Chuck: Resizing pockets while maintaining specific vector offsets
-
01:19:24 - Marilyn: Setting up Vectric files for a Shapeoko machine
Keywords:
3d modeling, inlay toolpaths, vcarve inlay, molding toolpath, combine modes, tool database, shapeoko, printing scale, aspire, cut2d, vector editing, node edit
