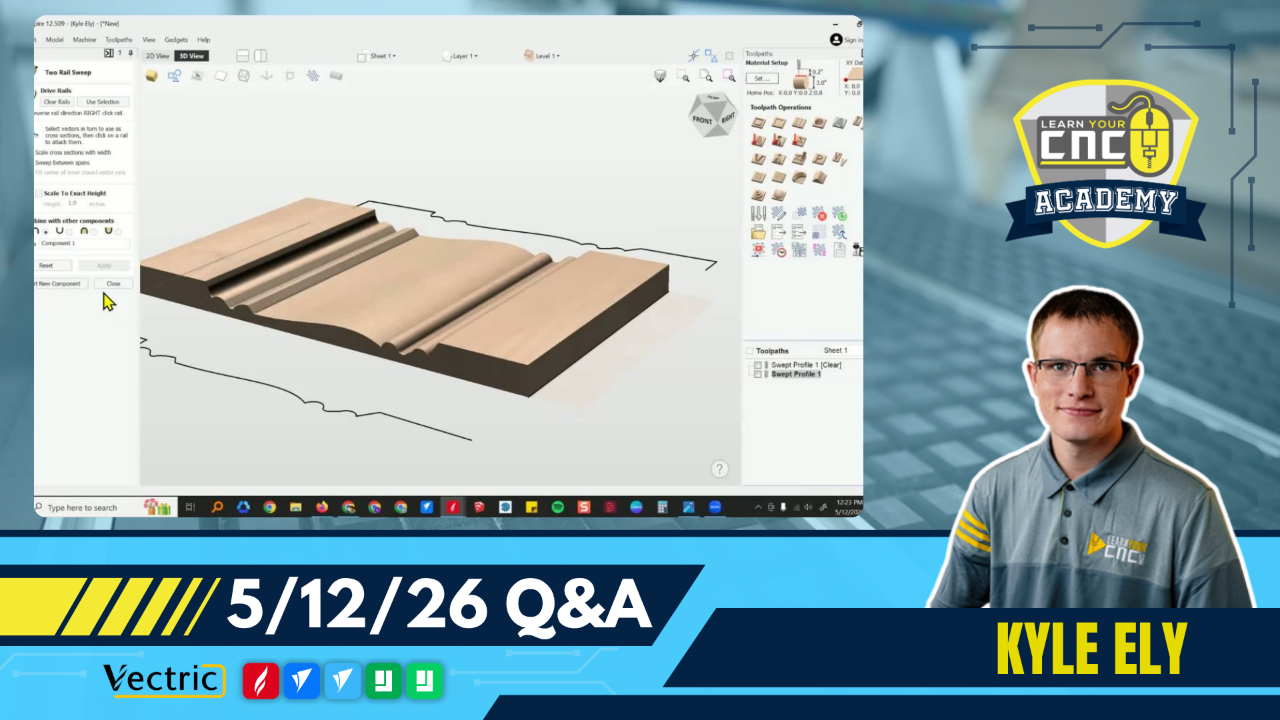

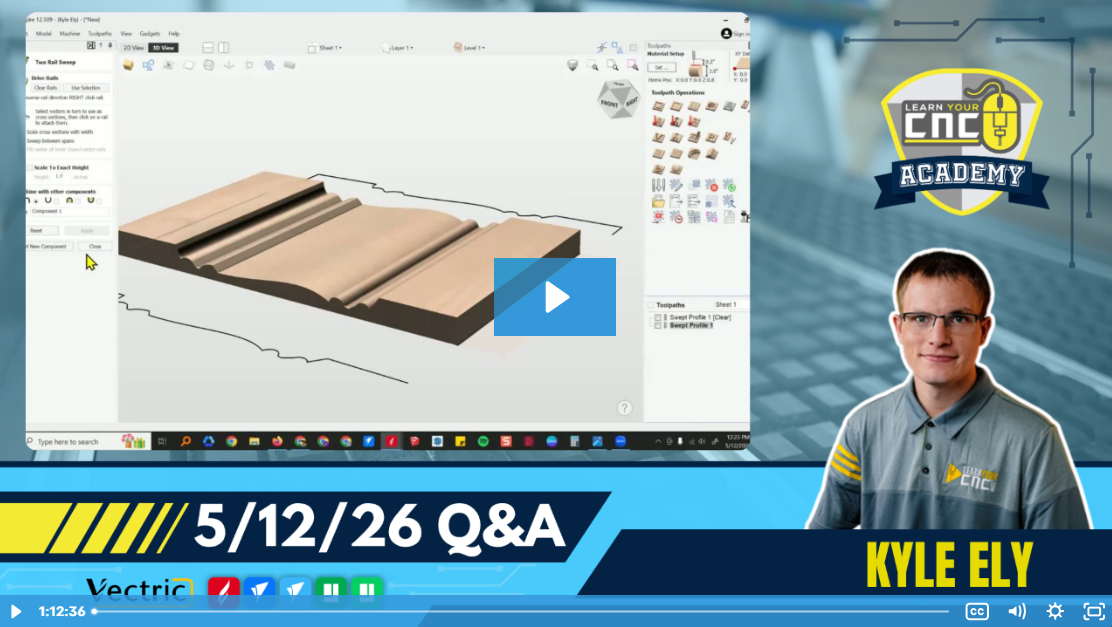

05-12-2026 Q&A: Roughing Bit Strategies, Rotary Direction Limitations, and Monitor Recommendations

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

This session focuses on troubleshooting 3D carving issues, such as unexpected gouges and selecting the right roughing tools for detailed projects like flags. We explore the limitations of VCarve Pro regarding rotary toolpath directions, how to fix toolpath calculation errors after editing text, and various hardware setups to improve visibility for users with declining eyesight. Additionally, the call covers tips for batching signs, cutting vinyl records, and calibrating Z-axis travel.

Key Tips Learned in this Q&A:

• Machining Allowance: Always leave a small amount of material (e.g., 0.04 inches) during 3D roughing .  Setting this to zero can cause the roughing bit to mark the final surface, leaving undesirable toolpath artifacts.

• VCarve vs. Aspire Rotary Limitations: In VCarve Pro, the Molding Toolpath is restricted to carving parallel to the drive rail .  To carve lengthwise on a rotary axis, you must use Aspire to create a 3D model, which allows for raster angle adjustments.

• Recalculating Toolpaths with Edited Text: If you edit text but do not change the vector state (grouping or converting to curves), you can simply use "Recalculate All Toolpaths" .  If errors occur, it is usually because the vectors were grouped or modified in a way the software no longer recognizes as the original selection.

• Batching Efficiency: For high-volume sign making, use a grid pattern for blanks and ensure all pieces are cut to an identical, exact size .  Calculating the total height of all pieces divided by the number of signs ensures designs remain perfectly centered across the batch.

• Z-Axis Calibration Precautions: When using the "paper trick" for zeroing, be mindful that paper is roughly 0.003 inches thick .  If your bit consistently cuts too deep, verify the material thickness with calipers, as "3/4 inch" lumber is rarely exactly 0.75 inches.

Questions Answered in this Q&A:

• 00:02:44 - (James) Why did my 3D finish toolpath create deep gouges in my project?

• 00:05:40 - (Carl) How do I choose between an 8th-inch and quarter-inch bit for 3D roughing?

• 00:08:15 - (Michael) Why am I losing detail in my roughing pass?

• 00:09:35 - Is an end mill or a ball nose better for roughing toolpaths?

• 00:13:44 - (TJ) Can I change the direction of a Molding Toolpath on a rotary axis to carve lengthwise?

• 00:23:16 - (Chris) Why won't my toolpath recalculate correctly after I updated the dates in my text?

• 00:28:38 - (Ted) Do you have recommendations for monitors or tools to help with poor eyesight?

• 00:38:07 - (Butch) How can I effectively batch signs for more efficient production?

• 00:46:34 - What settings and bits should I use for carving vinyl records?

• 00:48:55 - (Jim) Why does my Z-axis consistently cut 1/16-inch into my spoilboard?

• 01:09:49 - (Jerry) When should I use the "Selected Level" option in 3D carving toolpaths?

Keywords:

3d roughing, molding toolpath, rotary axis, vcarve pro, aspire, recalculate toolpaths, monitor recommendations, sign batching, vinyl record carving, z-axis calibration, machining allowance, next wave shark, idc woodcraft, glazing method, two-rail sweep
