#24: Cutting Board With Juice Grooves

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

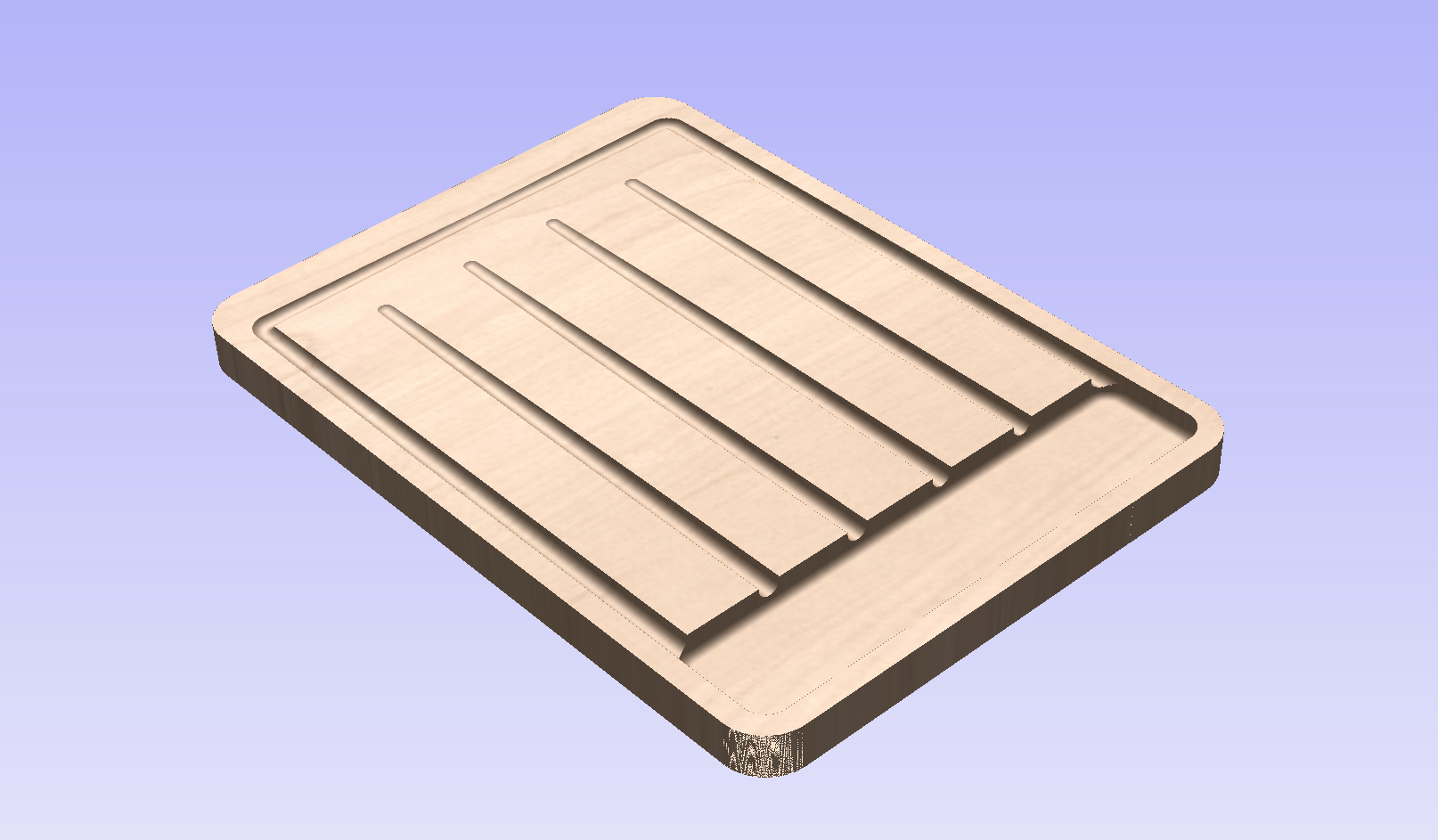

🔪 Learn how to design a custom cutting board with juice grooves and a collection tray in this comprehensive lesson. Kyle guides you through setting up a double-sided project, accurately drawing the board's profile with precise radius corners, and creating the inner juice grooves. Discover how to effectively use various drawing and editing tools, including the offset and fillet tools, and master techniques for evenly spacing multiple lines. The lesson then dives into toolpath creation, covering pocketing for the collection tray (using both end mill and ball nose bits for a clean finish), fluting for the juice grooves (with options for linear or smooth ramps), and profiling for the final cutout. Kyle also demonstrates how to add a smooth radius to the bottom side of the board using the molding toolpath, emphasizing tool sequencing and alignment strategies for double-sided machining.

Student Features:

Cutting board from this lesson made by Kris W.:

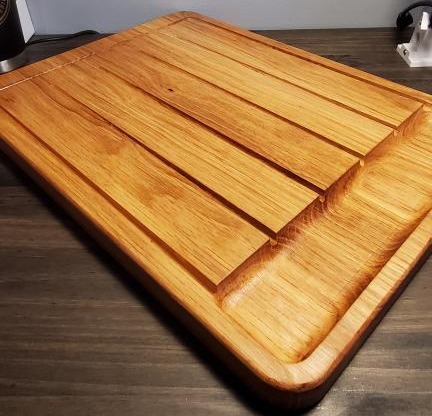

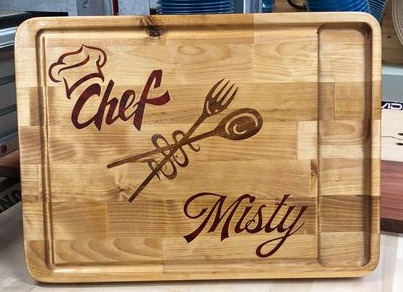

Cutting board from this lesson made by Kevin W.:

Keywords for this lesson(helps with search):

cutting board, juice groove, collection tray, double-sided machining, radius corners, rectangle tool, offset tool, fillet tool, evenly spacing lines, fluting toolpath, pocket toolpath, profile toolpath, molding toolpath, ball nose bit, end mill, tool sequencing, alignment pins, spoil board, material thickness, job setup, vector editing, measure tool, object properties, gizmos

#beginner #double sided #projectdownloads #toolpaths #vcarve
