01-20-2026 Q&A: VCarve Inlay Resizing, Image Tracing, and Complex Vector Cleanup

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

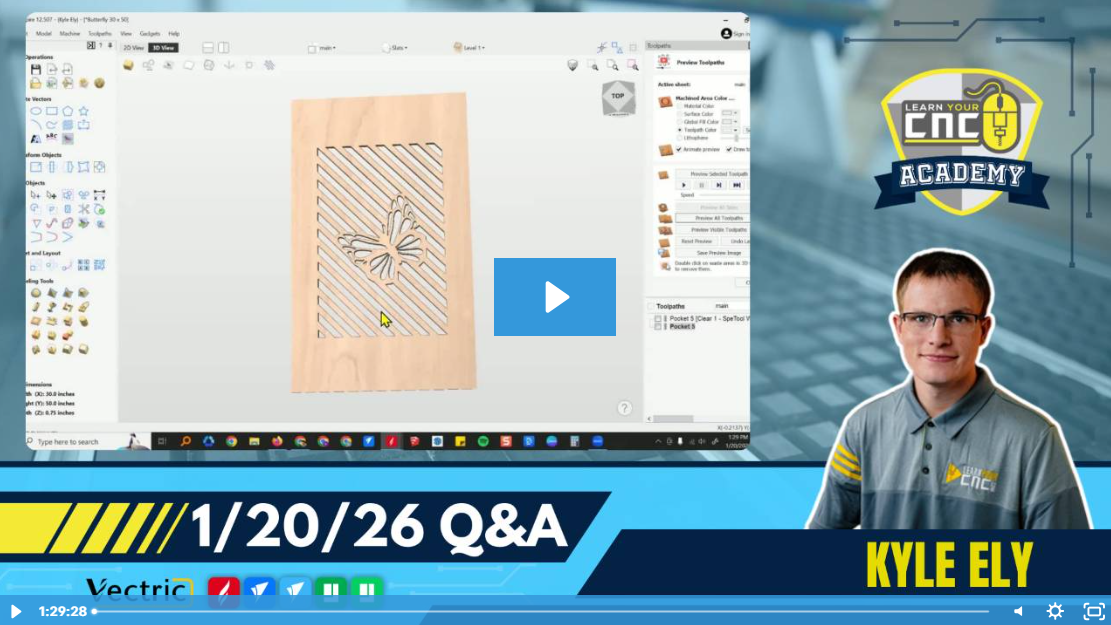

In this Q&A session, we tackled a variety of Vectric design challenges, starting with how to properly resize VCarve inlay files to fit different material sizes. We explored methods for converting photos and phone images into vectors, including manual tracing versus using the Trace Bitmap tool. Troubleshooting discussions covered misaligned round-over toolpaths, strategies for creating "jigsaw" style scroll saw patterns on a CNC, and managing efficient nesting for flag inlays. A significant portion of the call focused on a complex file repair involving a butterfly trellis design, highlighting the dangers of imported DXF files and how to clean up duplicate and open vectors for successful pocketing and profiling.

Key Tips Learned in this Q&A:

• Resizing VCarve Inlays: When resizing an inlay project to fit smaller material, it is safer to resize the female design first and then recalculate the VCarve Inlay toolpath.  This automatically generates and mirrors the male plug vectors on a new sheet, ensuring a perfect fit rather than scaling both sides manually, which can lead to errors.

• Trace Bitmap vs. Manual Tracing: For high-contrast images, the Trace Bitmap tool works well, but for complex or low-contrast photos (like a wood scroll saw project), manual tracing with the Draw Polyline or Freehand Draw tool often yields cleaner results.  Manual tracing allows for better control over vector quality and avoids the "messy" results typical of auto-tracing photos.

• Correcting Misaligned Round-Overs: If a round-over toolpath doesn't align with a pocket, check the vector offset setting. A pointed round-over bit usually requires cutting directly "On" the vector line.  Cutting "Outside" the line moves the profile away from the pocket edge, creating an unwanted lip.

• Handling Imported Files (DXF): Imported files often contain duplicate, overlapping, or open vectors that cause toolpath errors.  When facing a "messy" file, it is often faster to redraw simple geometric shapes (like background slats) from scratch rather than trying to repair hundreds of broken vectors.

• Managing Inlay Sheets: For complex inlays like flags, separate your design elements (stars vs. stripes) onto different sheets.  This allows you to apply different strategies—like "Sheet Limits" for stars and "Vector Offsets" for stripes—and move components individually to optimize material usage without breaking the toolpath logic.

Questions Answered in this Q&A:

• 00:02:57 - Nick: How do I precise resize a purchased inlay file to fit my smaller material

• 00:08:23 - Edward: How do I create a 3.25" wide octagon frame using clipart or drawing tools?

• 00:12:20 - Michael: How can I turn a cell phone photo of lettering into vectors for stencils?

• 00:17:01 - John: Why are my round-over and pocket toolpaths not aligning correctly?

• 00:21:40 - Ron: How should I approach carving a "jigsaw puzzle" or Intarsia style picture from a photo?

• 00:31:50 - Clint: How do I manage toolpaths for a flag inlay when moving stars and stripes individually?

• 00:43:25 - Alan: Does anyone know of tutorials for repairing a Chinese 6090 CNC machine?

• 00:44:22 - Mark: How do I close vectors where trellis rails meet butterfly shapes for a pocket toolpath?

Keywords:

vcarve inlay, resizing inlay, trace bitmap, manual tracing, intarsia, scroll saw, round over bit, vector alignment, flag inlay, nesting, sheet limits, vector offset, dxf import, bad vectors, boolean subtract, trellis, open vectors
