09-18-2025 Q&A: Aligning to Guidelines, Whiskey Staves Carving, and Isolating 3D Details

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

In this Q&A, we covered several Vectric and CNC challenges. We discussed how to align objects with guidelines, methods for carving on curved whiskey staves (including inlay and epoxy techniques), and strategies for isolating detailed areas in 3D carvings using rest machining and vector boundaries. The session also explored toolpath setup, avoiding wasted machining time, and how to manage multiple finishing passes efficiently.

Key Tips Learned in this Q&A:

• Guideline Alignment: Objects cannot be aligned directly to guidelines, only snapped. For precise alignment, draw vector lines and use the "Align Selected Objects" tool.

• Carving Whiskey Staves: Best results come from creating a 3D surface model and projecting toolpaths onto it. For inlays, epoxy is more practical than traditional wood inlays on curved surfaces.

• Toolpath Efficiency: Add multiple tools in one 3D finishing toolpath to avoid duplicate machining and wasted time. Separate toolpaths do not communicate with each other.

• Rest Machining & Detail Control: Use progressively smaller bits (⅛", 1/16", 1/32") and enable rest machining to capture finer details without re-cutting large areas.

• Isolating Detail Areas: Draw closed vector boundaries around specific features (e.g., wings, faces) and assign smaller bits to only those regions to save machining time.

Questions Answered in this Q&A:

• 00:03:44 – How can I align objects to guidelines without manually dragging them?

• 00:10:35 – How do I carve V-carve text onto curved whiskey staves or barrel pieces?

• 00:23:46 – What does “pendant controlled only” mean for Next Wave’s Virtual Zero system?

• 00:26:42 – Could I do a deep inlay on a 3D carved surface afterward?

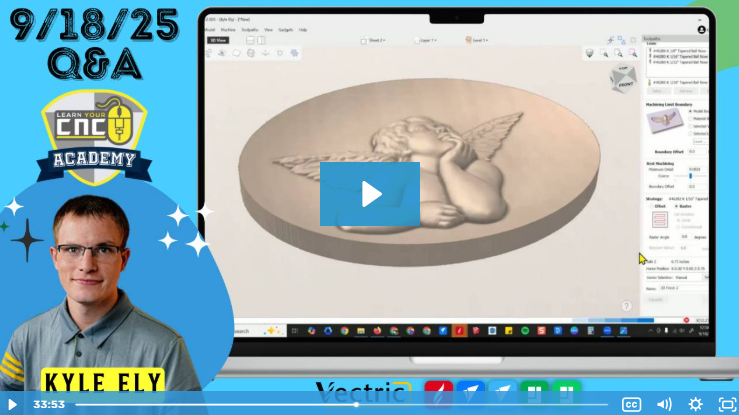

• 00:33:51 – How do I isolate small detailed areas (faces, hands, INRI sign) for better 3D carving results?

• 00:40:52 – Why does my machine re-cut from the beginning after changing bits instead of continuing from the carve area?

• 00:42:45 – Should I add multiple bits in one toolpath, or separate them across toolpaths?

• 01:01:59 – What’s the difference between modeling resolution in setup and rest machining detail in toolpaths?
