08-05-2025 Q&A: Two-Rail Sweep, Brass Cutting, Brush Icons, and Box Gadget Fixes
Aug 05, 2025Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!
In this session, we answered questions ranging from sculpting heart shapes with two-rail sweeps to using the box creator gadget effectively. We tackled brass milling tips, Aspire’s quirks when running on Parallels on a Mac, and component alignment in crown molding. The group also discussed mirrored sheets for jig making and previewing 3D toolpaths in VCarve/Aspire. We wrapped up with Aspire vs. Vista Sculpt for 3D ribbon creation.
Key Tips Learned in this Q&A:
-

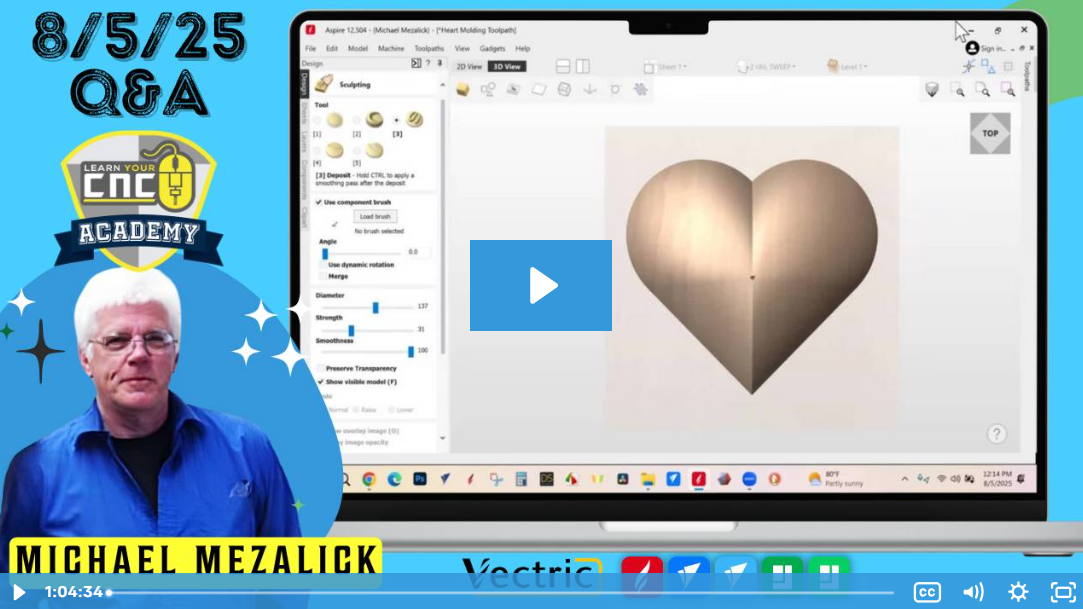

Two-Rail Sweep Tips: To align profiles correctly in a two-rail sweep, ensure both rails share the same start point using the P key and manipulate arcs for custom profiles.
-
Cutting Brass Safely: Use slow feed rates (10–20 ipm), high spindle speed, shallow cut depth, and consider duller bits to prevent grabbing.
-
Mac Brush Icon Fix (Parallels): On Parallels, set DirectX 11, adjust resolution, and display scaling to fix missing brush previews in Aspire.
-
Fixing Box Maker Errors: Errors often stem from joint width vs. material dimensions or timeout issues. Adjust tab size or scale down height.
-
Create Mirrored Sheets: Use sheets and mirror vectors for two-sided or mirrored parts, ensuring proper inside/outside designation is preserved.
Questions Answered in this Q&A:
-
00:00:08 – How to control the length/profile in a two-rail sweep heart shape
-
00:05:03 – Tips for cutting brass and selecting bits
-
00:10:34 – Why sculpting brushes don’t show images on a Mac using Parallels
-
00:14:35 – Reducing pixelation in long crown molding component toolpaths
-
00:24:44 – How to join inner and outer Vectors in a domed heart shape
-
00:30:02 – Box Making Gadget keeps giving “too big/small” errors
-
00:36:15 – What does the Toolpath Preview do?
-
00:37:53 – How to mirror a double-sided jig to make a right-side copy
-
00:44:04 – Creating a 3D ribbon from a 2D image using Aspire and Vista Sculpt
-
00:51:03 – Best software choice for turning 2D images into 3D reliefs
-
00:52:45 – How to preview and cut a 3D STL model in Vectric
-
01:01:52 – Can toolpaths be copied between sheets?
-
01:02:43 – Adjusting for collet nut shape in long bit clearance check
-
01:03:24– When does Kyle usually post replay archives?
