07-31-2025 Q&A: VistaSculpt, DIY Vacuum Tables, and Multi-Zero Setup
Jul 31, 2025Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

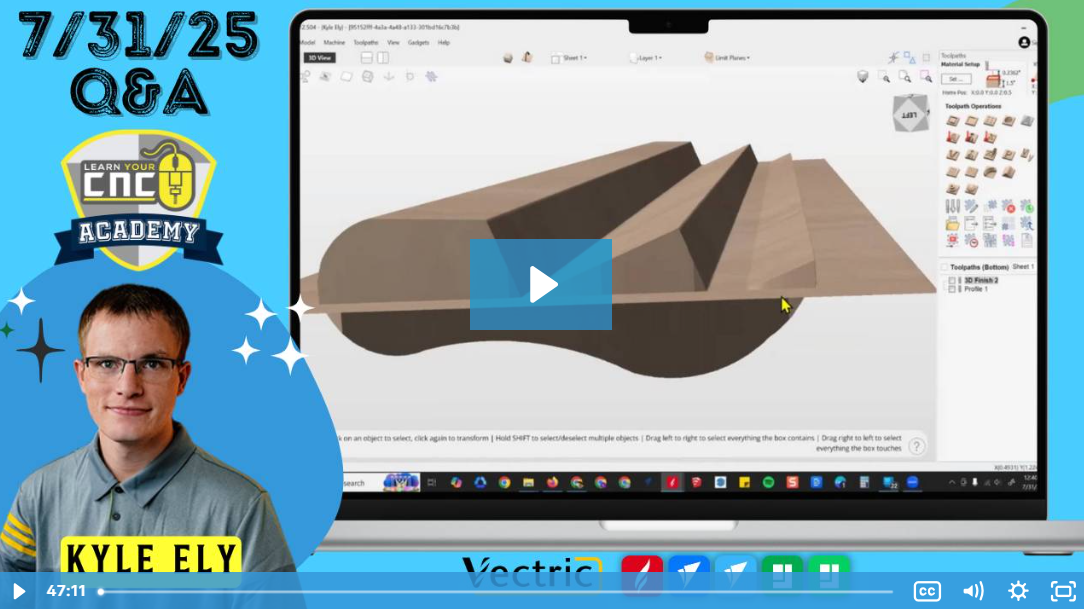

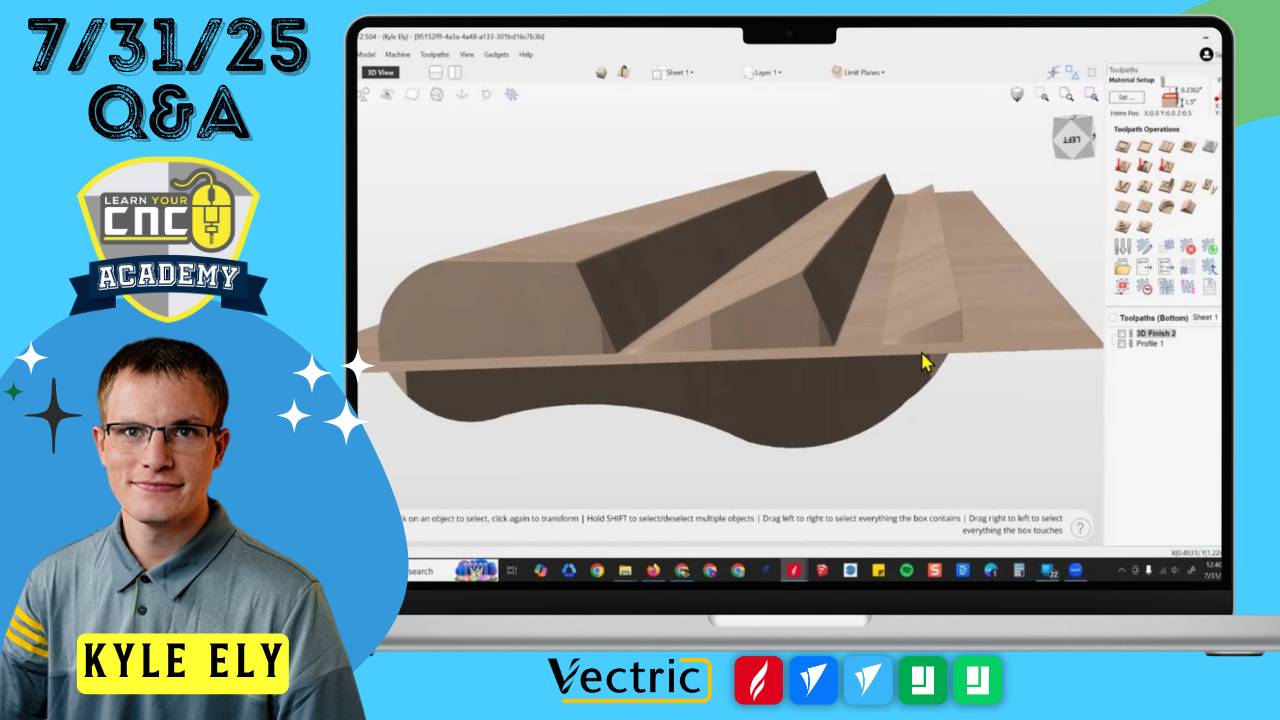

In this Q&A session, we tackled questions on how to align shapes to lumber edges in VCarve, fix plunge burn marks using lead-ins and lead-outs, and improve STL file handling from SketchUp and image tracing for 3D modeling. We also covered double-sided toolpath issues involving limit planes, troubleshooting depth problems caused by auto tool zero miscalibration, and resizing vacuum table grid layouts.
Key Tips Learned in this Q&A:
-
Avoiding Burn Marks: Use lead-in and lead-out settings in profile toolpaths (via “Show advanced toolpath options”) to prevent plunge/retract marks on the material.
-
Precise Shape Rotation: Use VCarve’s dimension tool to measure angles and rotate parts accurately to align with milled lumber edges.
-
Double-Sided Carving Accuracy: Lower the limit plane slightly below the midpoint on both sides to prevent unwanted flat planes and to ensure the toolpath overlaps cleanly.
-
Fixing Tool Depth Issues: If your tool cuts too deep, verify your Z-zeroing method, job setup, and whether you’re zeroing to material surface or machine bed.
-
Resizing Vacuum Grids: Use the scale tool with “scale items individually” selected to resize square rows for proper end mill clearance, ensuring spacing is slightly more than the bit diameter (e.g., use 0.26 for a 0.25" bit).
Questions Answered in this Q&A:
-
00:00:32 – How to prevent burn marks at plunge/retract points and align parts with milled lumber edges in VCarve
-
00:10:06 – How to remove the zero plane in a double-sided STL import and fix seam issues in VCarve
-
00:17:43 – Why tool plunges too deep unless material thickness is increased; could auto tool zero be the issue?
-
00:22:04 – How to convert an image into a 3D STL model using Aspire
-
00:29:58 – How to resize a grid layout to have 0.25" between squares for a DIY vacuum table
-
00:35:40 – Why does Vectric say a 0.25" bit doesn’t fit even when the slot is exactly 0.25"?
-
00:38:34 – What7-29-2025-Q&A-Meetup finish works best for 3D printed models made with VistaSculpt?
Keywords:
vcarve, leads, lead-in, lead-out, burn marks, rotate vectors, align parts, double-sided toolpaths, limit plane, stl import, aspire, image to stl, vista sculpt, auto tool zero, cnc z-depth issue, vacuum table grid, vectric, tool clearance, resize parts, vcarve tricks, 3d modeling from image
