05-20-2025 Q&A: Fluting Offsets, SketchUp Imports, Toolpath Flares, and Clipping Interlocking Rings

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

In this session, we tackled a wide range of questions including troubleshooting fluting toolpath misalignment, importing complex SketchUp files into Aspire or VCarve, and the mysteries of flared toolpaths on domed components. We explored practical strategies for smoothing out vector nodes, creatively designing interlocking wedding rings using only VCarve, and setting permanent XY origin points with offsets. Bonus topics included tiling large 3D designs across cabinets, safe use of long bits, and advanced CNC project showcase work.

Key Tips Learned in this Q&A:

• Fluting Misalignment Fix: Recalculating all toolpaths and inspecting vector order helps fix unexpected tool shifts during fluting operations.

• Node Cleanup for EPS Imports: Use “Fit Curves to Vectors” with Bézier curves to reduce node clutter and improve toolpath smoothness on imported art.

• Toolpath Flare Explained: When carving domes, software prioritizes shape preservation by adjusting the centerline—leading to wider toolpaths but accurate outcomes.

• Permanent XY Origin via Offset: Using the “Use Offset” setting in Job Setup allows for repeatable custom origins, but beware—it sticks until manually reset.

• Creative Clipping in VCarve: Clipping multiple domes to custom vectors can produce layered interlocking effects even in VCarve, mimicking Aspire-like results.

Questions Answered in this Q&A:

• 00:00:15 – Why did my fluting toolpath shift a quarter inch on re-cut?

• 00:06:59 – Can French closed captioning be added back to replays?

• 00:08:54 – Is it safe to use long (6") end mills? Where can I get quality bits?

• 00:14:17 – Why is my round dome component toolpath flaring at the edges?

• 00:19:46 – How to fix weird SketchUp imports with too many vectors or components?

• 00:23:44 – How do I reduce vector nodes from an EPS to simplify toolpaths?

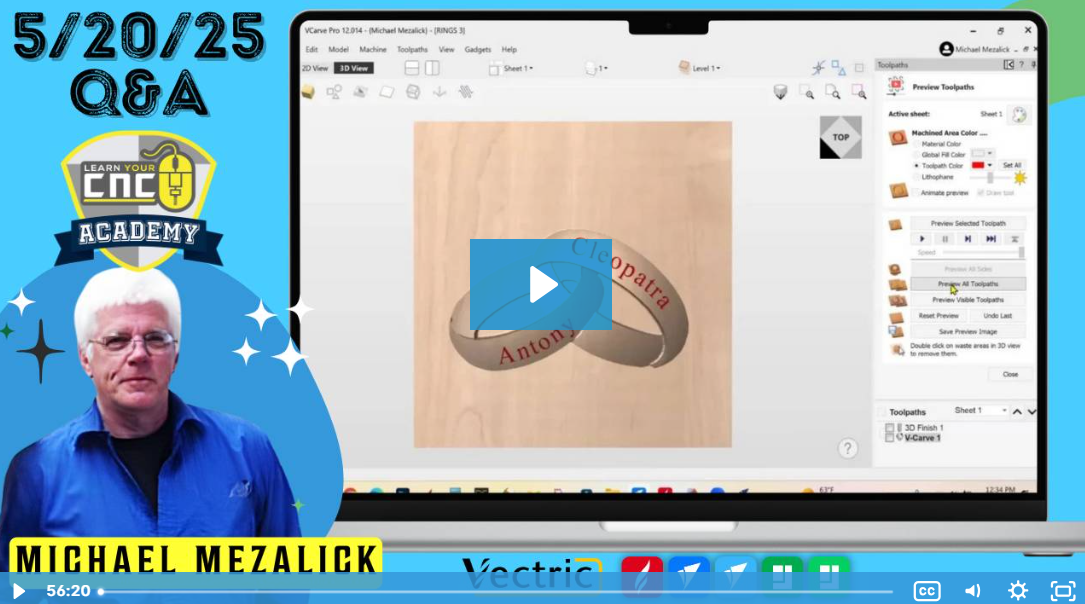

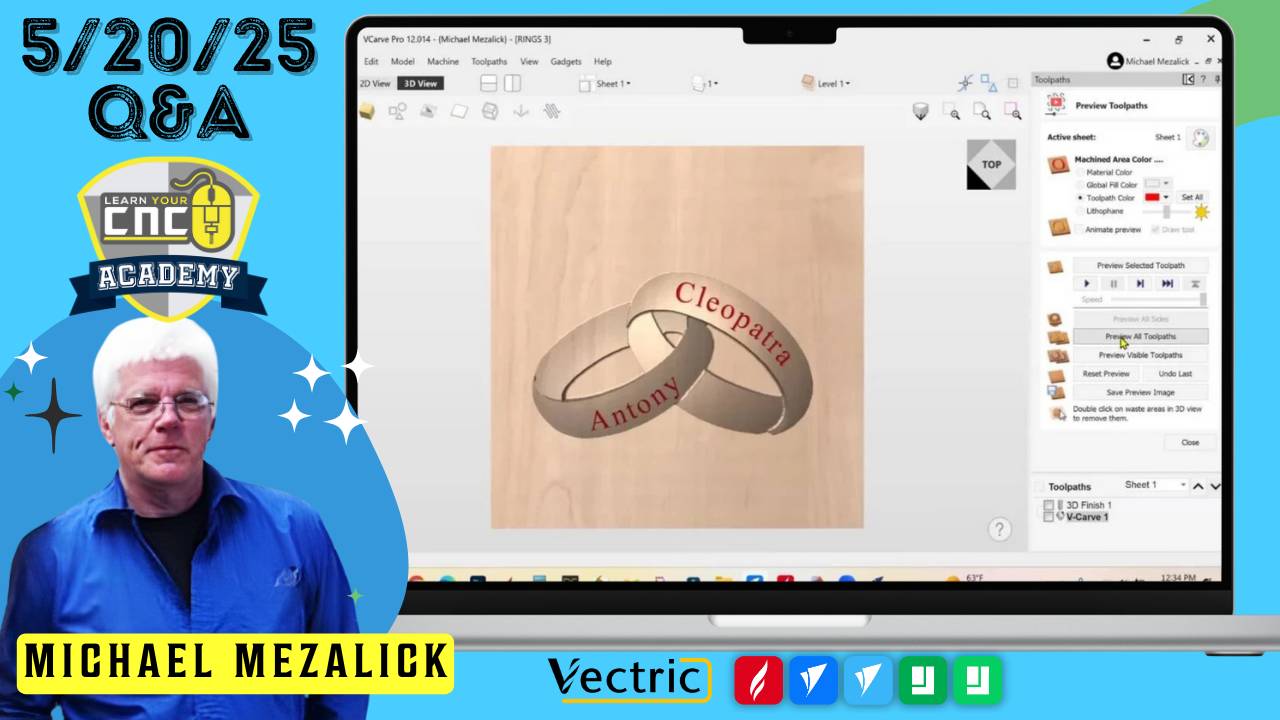

• 00:28:02 – What are the best ways to make interlocking wedding rings in VCarve?

• 00:34:44 – Can I permanently define an XY origin so I only need to zero Z?

• 00:41:01 – How can I split a 3D model across two cabinet doors on a small machine?

• 00:47:13 – CNC showcase: How a 6" bit was used in multi-story church frames

• 00:54:05 – What’s a good creative challenge idea using gears like Kyle's project?
