04-14-2026 Q&A: Slicing Double-Sided Models, Cleaning AI Vectors, and Tool Setup for Specialty Bits

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

In this Q&A session, Speaker 3 (Rob) addresses community questions regarding technical challenges in Vectric software while filling in for Kyle. The discussion covers the limitations of slicing organic two-sided models, using AI tools like Copilot and ChatGPT to clean up noisy bitmaps for tracing, and troubleshooting depth inconsistencies in VCarve toolpaths. The group also explores setup procedures for specialty bits that cannot be natively modeled in Vectric, such as slot cutters and dovetail bits.

Key Tips Learned in this Q&A:

• Slicing Limitations for Organic Shapes: Slicing organic, thin-walled models (like bowls) into components is difficult because Vectric won't model undercuts.  This results in solid blocks within slices that make gluing the final pieces back together impractical for achieving a hollow bowl shape.

• AI Image Pre-processing: If a bitmap trace is noisy, use AI tools like Microsoft Copilot or ChatGPT to convert the image into a "clear clip art style" with high contrast and clean lines. This removes watermarks and background noise, leading to much cleaner vectors.

• Fixing Inconsistent Carving Depths: For depth issues in VCarve clearing passes—often caused by material movement or moisture absorption in Bamix—a separate Pocket Toolpath can be used to clean up the flat areas. Using an up-cut or down-cut end mill in a pocketing path can provide a more consistent flat bottom than a large area clearance tool.

• Specialty Bit Setup: Since Vectric cannot visually represent undercuts for tools like slot cutters or keyhole bits, they should be entered into the database as regular end mills. Users must ensure lead-ins are positioned far enough outside the material so the bit reaches the correct depth before contacting the wood.

• Parallels for Mac 3D Preview Fix: If the 3D preview fails in Aspire while running on a Mac via Parallels, switching from hardware to "software render" in the options menu can restore functionality.  However, this may cause the software to bog down during 3D operations.

Questions Answered in this Q&A:

• 00:02:17 - Patrick D: How do I slice a double-sided bowl (Lesson 85) into 0.75" components and align them successfully?

• 00:12:35 - Mark S: How can I clean up a noisy floral pattern with a watermark to get a better bitmap trace for chip carving?

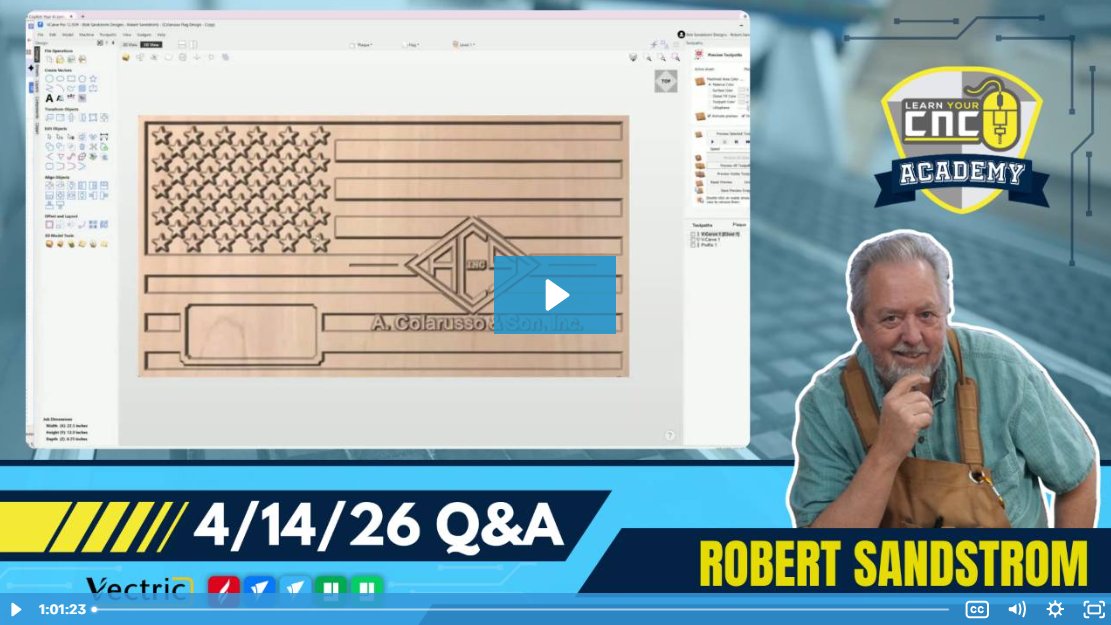

• 00:19:55 - Billy J: Troubleshooting "witness marks" or inconsistent depths during the clearing pass of a VCarve flag project.

• 00:32:18 - Darrell: Advice on upgrading to a larger CNC and whether to invest in a 2.2 KW spindle.

• 00:33:17 - Barry: Can I run a finish path a second time with a 1/16" ball nose bit for finer detail without removing the project from the machine?

• 00:38:18 - Jamie S: How do I add a specialty slot-cutting tool to the database and use it for side-surface grooves?

• 00:49:13 - John Terdik: Suggestions for achieving sharper points on stars in a USA flag project when using a 30-degree V bit.

• 00:51:59 - Tim: Did a recent Parallels/Mac update break the 3D preview in Aspire, and how is it fixed?

• 00:56:33 - Don Scott: What exactly is "Vectric Spark"?
