#247: How to 3D Model Banner Ribbons in Aspire (Part 1)

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

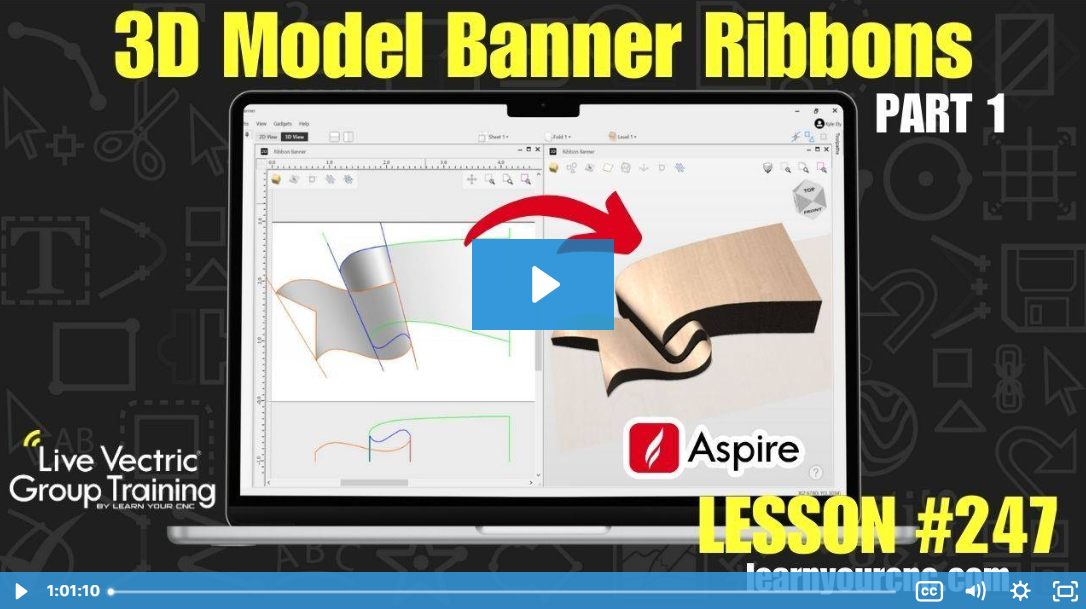

In this lesson, we kicked off a brand-new project focused on modeling custom 3D ribbons and banners using Aspire. These are commonly used in projects like police badges, award plaques, or decorative signs. Kyle walked through how to trace a banner image from scratch, isolate the folds into clean vector shapes, and use the Two Rail Sweep tool with a custom side profile to begin shaping each fold into a realistic 3D model. He also explained why breaking the ribbon into multiple sections is essential for achieving an accurate folded appearance and discussed tips for modeling symmetry and planning mirrored designs. A part two will follow to complete and refine the ribbon.

Keywords for this lesson(helps with search):

aspire, vectric, 3d modeling, custom ribbon, banner, two rail sweep, vector tracing, node editing, model folds, sculpting, mirror tool, bitmap trace, crop bitmap, guidelines, modeling resolution, draw line, draw rectangle, crop bitmap, trace bitmap, node edit, mirror, join vectors, interactive trim, modeling tab, two rail sweep, clear area outside vector, guide rulers, layer manager, job setup, modeling resolution, extend vector, swap rail order, insert point, delete span, align objects
#3dmodeling #advanced #aspire #logo #projectdownload
