06-30-2026 Q&A: CNC Machine Maintenance, Nested Parts, and 3D Toolpath Optimization

Note: You must be a member of the Learn Your CNC Academy Community to watch this replay. Benefits include weekly Q&A Meetups, weekly project lessons, monthly CNC challenges, an active community of Vectric users, past replay lessons & project files, and so much more!

In this Q&A session, we covered solutions for wavy carves, common line cutting on nested cabinet parts, and techniques for creating wavy flags and 3D gun grips. We also reviewed ways to optimize 3D finishing toolpaths to significantly reduce carving times, replace text on 3D ribbons using Aspire's sculpting tools, and create custom textures like crosshatched pistol grips.

Key Tips Learned in this Q&A:

• CNC Machine Maintenance: Wavy results or unexpected plunge depths during a cut are often caused by loose components or vibration in the machine, which can be resolved with routine maintenance and tightening.

• Aligning Tabs on Nested Parts: When nesting parts closely together, ensure that your tabs line up perfectly on adjacent parts so that consecutive toolpath passes do not cut them off.

• Optimizing 3D Finish Toolpaths: Avoid using multiple tools in a single finishing toolpath, as minor zeroing discrepancies will leave visible lines .  Instead, utilize a single tapered ball nose bit and increase your plunge rate to match your feed rate, which can easily cut hours off your total machining time.

• Erasing and Replacing Text on 3D Models: Using Aspire's sculpting tools, you can deposit and smooth material over existing 3D text to create a blank surface .  From there, apply a VCarve toolpath set to project onto the 3D model for clean, crisp lettering.

• Creating Grip Textures: A crosshatch pattern for tool handles or gun grips can be easily created using the Quick Engrave toolpath with the crosshatch option enabled, or by overlapping two pocketing toolpaths set at perpendicular angles.

Questions Answered in this Q&A:

• 00:03:13 - Bruce: How to fix wavy or poor-quality letters when carving a Harley Davidson sign?

• 00:15:25 - Dan: How can I set up the toolpath to do common line cutting on nested cabinet parts to save time?

• 00:24:43 - Lawrence: How do I chamfer the pocket sides on a wavy flag's 3D profile?

• 00:29:50 - John: How do I blend the bottom side of a wraparound 3D gun grip to the top side without losing width?

• 00:32:24 - Ron: What causes the Z-axis to lose steps arbitrarily when running a 3D finishing toolpath for a firearms sign?

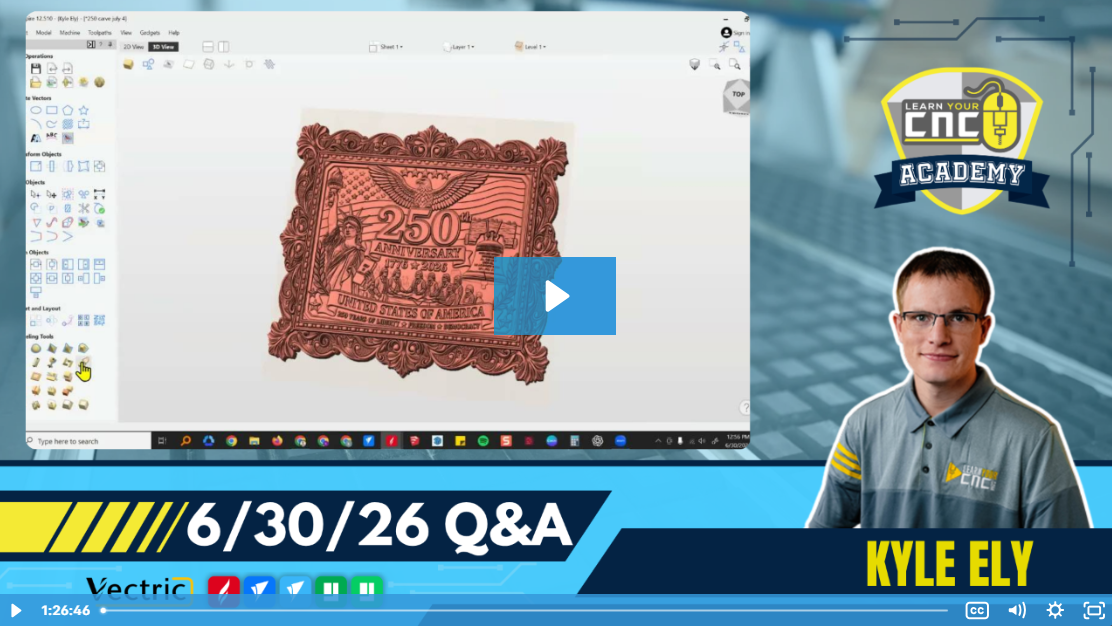

• 00:42:47 - Antoine: How can I reduce long carving times and replace the text on banners for a 250th-anniversary sign?

• 01:01:17 - Jefferson: How do I produce triangular chip carving designs and a sculpted background texture around a cross?

• 01:10:24 - Scott: Is there a modern AI tool available to make wireframe designs for acrylic lighting projects?

• 01:12:10 - Tim: Review of a member's circular scallop project using the fluting tool.

• 01:17:07 - Gerard: What is the best way to laser engrave a JPEG image of a person's face instead of using vectors?

• 01:19:05 - Scott: How do I create a crosshatch grid design for a pistol grip?

• 01:24:50 - Richard: Which Master Course lesson covers surfacing and flattening?

Keywords:

cnc machine maintenance, common line cutting, nested cabinets, wavy flags, 3d modeling, gun grips, 3d finishing toolpaths, aspire sculpting, chip carving, texture toolpath, wireframe design, acrylic lighting, laser picture, quick engrave, crosshatch pattern
